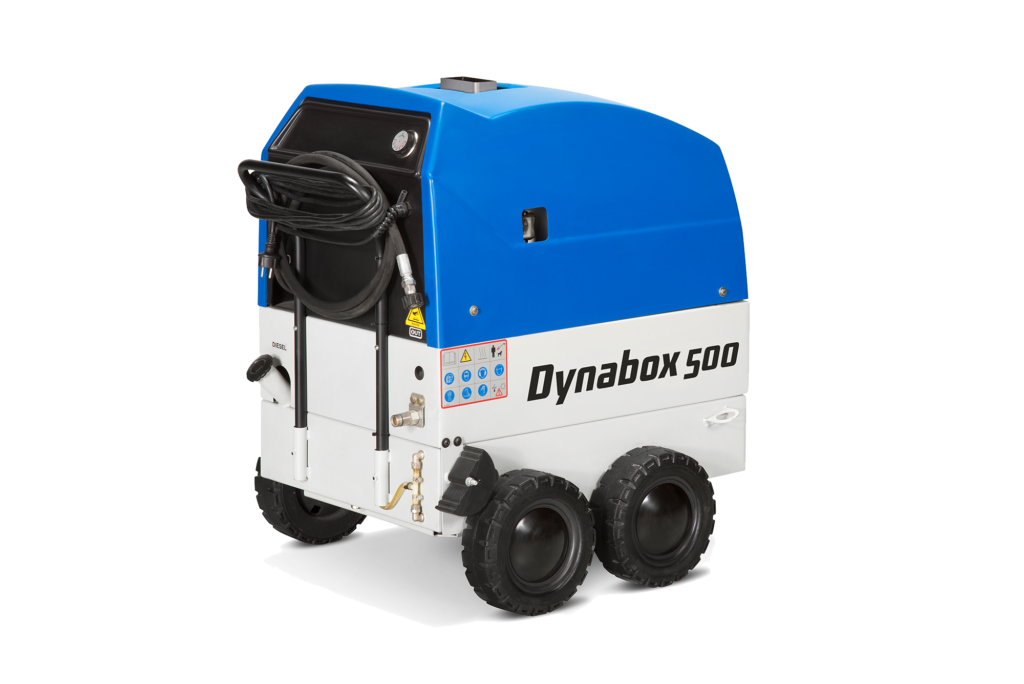

DYNABOX 500


DYNAJETting with a system: the powerful Dynabox 500 hot-water unit, offering a working pressure of up to 500 bar (7,250 PSI), is the ideal complement for all DYNAJET Trolleys. Simply connect on the high-pressure side between the high-pressure cleaner and the cleaning tool, and, with high-pressure hot water of up to 95 °C, you will already be achieving results which are not possible with conventional cold-water systems. The other special features of the Dynabox 500 are, of course, its light weight, small dimensions and its easy-loading and easy-transportation characteristics.

Advantages

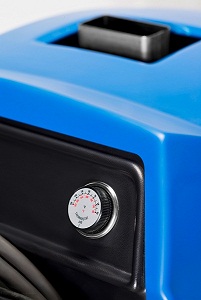

  • Easy burner monitoring through integrated inspection glass
  • Control voltage supply via the normal power network
  • Long connection hose (2 m) for simple and quick connection to a trolley
  • Tank fill-level indicator
  • A high standard of safety due to flow monitor, pressure switch, safety valve and optical flame monitor
  • Compact design of the diesel burner and a high performance yield
  • Ergonomic handle
  • Large tank opening for easy filling
  • 4-wheel design with locking brake for secure positioning and maximum stability

Hot-water generators

Pressure class: 500 bar (7,250 PSI)

Maximum flow rate: 15 l/min(3.97 USgal/min)

Hydraulic power: 14 kW (19 Hp)

Drive type : Diesel motor

Dimensions (L/W/H): 80*75*90 cm
