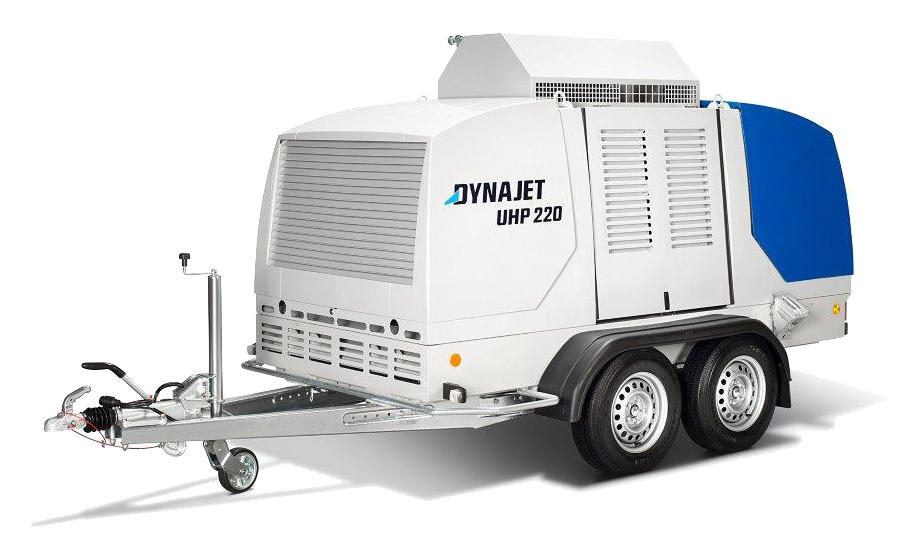

Trailers up to 3000 bar


The DYNAJET Trailers up to 3000 bar,UHP 220 cold-water ultrahigh-pressure cleaner convinces with the highest level of functionality, efficiency and economy. The ultrahigh-pressure unit not only fulfils the latest safety and emissions standards (TIER 4F) but, with its numerous innovations, makes water-jetting more ergonomic, more efficient and more sustainable.

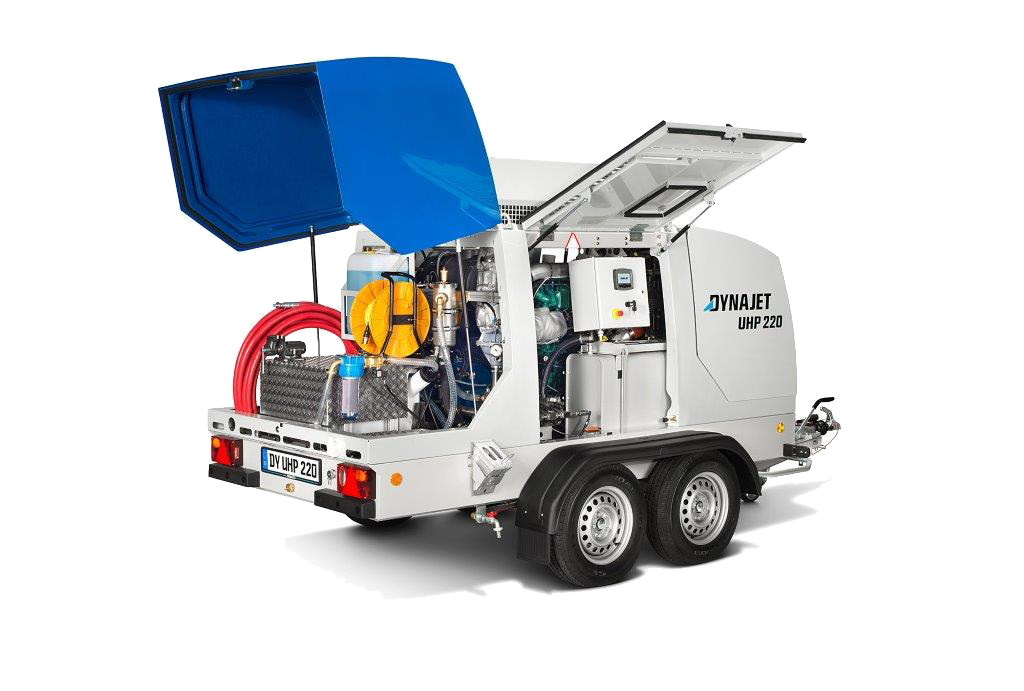

In addition to the two hoods in tried-and-tested targa design, the DYNAJET UHP 220 has two large maintenance doors so that you can get to all the key engine, pump, storage area and operating elements quickly and easily. What is more, the trailer is a true miracle of space: a large storage area and an additional work surface, including a vice, have been integrated and are quickly accessible.

Standard features
Long-life 4-cylinder VOLVO PENTA diesel motor, triplex high-pressure plunger pump with carbide plungers, power-end cooling, full lift safety valve, compressed- air connection, water temperature monitor, buffer tank with booster pump incl. filter and suction-pressure gauge, protection and leak tray, DYNAJET EASY CONTROL with simple selection of operating modes, enabling pressure or speed to be preset freely, graphical colour display, master/slave mode for synchronous operation of
2 water-jetting systems, spark arrestor, connection for external emergency shutdown switch, 2 hoods and 2 doors (targa system), chassis and sound-insulation hoods, document case, and EU approval for road use.

UHP220

Cold Water

Working pressure: 3000 bar (43,511 PSI)

Max Flow rate: 24 l/min (6.34 USgal/min)

Motor power: 160 kW (220 HP)

Dimensions (L/W/H): 467*197*218cm
